GT1446GLSZ turbo Turbine wheel shaft 785507-0003 for 810944-0005 turbochargers
Fit Turbos
GT1446GLSZ
Part Number:
785507-0003/785507-0007/785507-0011
Fit Turbos
810944-0005 799502-0001,799502-0002,810944-0004,810944-0005,810944-0006,
810944-0009,810944-0011,811311-0001,811311-0002,812812-0006,
814999-0004
Vehicle OE
55219660,55228035,55231115,04892938AC,04892938AD,04892938AH,71724486,71724561,
71724850,71724851,71795196,55238189,55278506,71796302,55248413,55269969
Engine Code
940A2000,955A8000,955B1000,312A1000,312A3000,EAM
Application
Dogge Dart Fiat 500 2013- Alfa Romeo Mito with 1.4L MultiAir, 955B1000 Engine
2013- Dodge Dart with 1.4L MultiAir Engine
2013- Dodge Dart with MultiAir, FIRE Gasoline Engine
2013- Fiat 500, 5-Spd C510 Manual (X, T) Abarth Hatchback, (C) Abarth Cabrio with with 1.4L I4 16V MultiAir Gasoline Engine
2014- Jeep Renegade with 1.4L MultiAir, 55263624 Engine
| Model Number: | GT1446GLSZ |
| Fit Turbos | 785507-0003/785507-0007/785507-0011 |
| Wheel Specs | - Inducer : 39 mm
- Exducer : 34 mm
- Shaft OD (Journal Bearing Side) : 6mm
- Shaft OD (Compressor Wheel) : 4.07mm
- 9 Blades |
Perfect balance finished.you can use it directly.
MS-TECH now have more than 1000 shaft wheel available, we are continually expanding many new replacement parts every month, More shaft wheel are currently in development with many popular parts. At the same time, we can manufacture most shaft wheel into shaft &wheel(Rotors) , If you want to know more details, Please feel free to contact us.
Our shaft wheel are widely used in Garrett, Holset,KKK,Schwitzer,Borwarger, Mitsubishi, IHI,Toyota and other turbochargers.
GT12,GT15,GT17,GT20,GT22,GT25,GT30,GT32,GT35,GT37,GT42,GT45,TA34,TA45,TA51,TB22,TB25,TB28,TB31,TB34,TB71,TBP4-180,TBP4-210, TBP4-270, T04B,T04E
HX30,HX35,HX40,HX40W,HX50,HX55,HT3B,H1C,H1E,H2C,H2D...
S200, S200G,S300,S400,S410,S2A,S3A,...
K03, K04,K14,K16,K24,K27,K27-B,K27-W,K27-2,TK27, K28, K29, K31, K36, KP35, KP39
RHB31, RHF5,RHB5,RHB6,RHC6,RHC9
TD04, TD05,TD08,TF035HM,TF035VGK
CT9, CT12,CT12B,CT20,CT26
OEM as followed:
435922-0001, 435737-0006, 435243-0001, 435243-0002, 435922-0004, 435737-0015, 451311-0014, 717360-5005, 717360-5005, 451310-0003, 451311-0002, 446905-0006, 446905-0004, 446905-0004, 446905-0001, 446905-0007, 446905-0010, 446249-0003, 441064-0001, 441064-0002, 433290-0042, 433158-0001, 433290-0004, 433298-0032, 434713-0007, 433298-0004, 433165-0004, 433165-0001, 433165-0007, 434713-0001, 434713-0005, 433298-0001, 433298-0030, 707669-0005, 707669-0010, 434883-0017, 434533-0002, 433257-0010, 434714-0009, 434533-0006, 434533-0012, 434533-0017,
704580-0003, 434715-0027, 436504-0004, 434533-0007, 434533-0009, 434533-0018, 717904-0001, 704580-0001, 434883-0001, 434883-0003, 434883-0017, 434882-0004, 434882-0072, 434882 0005, 435922-0016, 434717-0028, 434281-0018, 449587-0001, 740244-0001, 435368-0003, 740244-0001,
5303-120-5008, 5303-120-5023, 5303-120-5029, 5303-120-5015, 5303-120-5001, 5304-120-5008, 5304-120-5010, 5314-120-2101, 5314-120-2111, 5314-120-5009, 5314-120-2104,5314-120-2105,5314-120-2114,5314-120-2115,5314-120-5002,5314-120-5006, 5316-120-2101, 5316-120-2103, 5316-120-5015, 5316-120-5028, 5316-120-2106, 5316-120-2102, 5316-120-2113, 5316-120-5000, 5316-120-2113, 5316-120-5000, 5324-120-2103, 5327-120-2111, 5327-120-2109, 5327-120-2110, 5327-120-2113, 5327-120-2117, 5327-120-5005, 5327-120-5016, 5327-120-5017, 5336-120-2103, 5435-120-5000, 5435-120-5004, 5435-120-5006, 5435-120-5010,
314653, 313819, 166621, 166612, 167729, 314629, 316937, 15273, 55791, 158396, 184409, 3519336, 3522879, 3535359, 3522880, 3504344, 3504344, 3522232, 3522773, 353980, 3595129, 3595129, 3528251, 3534287, 3521033, 3521034, 3524031, 3522075, 3590433, 314653, 171231
49135-30100, 49177-30130, 49177-30300, 49189-30100, 49183-30100, 49179-30130
49179-30120, 17201-54060, 17201-54030, 17201-17010, 17201-17040, 650551-3120, 650551-3201,
5439-120-5017, 740244-0001, 3590433, 773720-0001, 407452-0004, 407452-0050, 171231, 442208-0001, 5303-120-5016 755046, 764609, 436379-0003, 17201-33010,49135-07100, 445812-0002, 5336-120-5005,
52986,55789,56180,56426,57175,61685,61986,61987,62034,62118,62687,63382,65520
3500433,3502499,3502817,3503023,3503402,3503403,3503642,3503798,3504106,3504344,3504346,
MS-TECH manufacture and sell kinds of turbochargers and spare parts. For example, turbochargers,wheel and shaft (rotors), CHRA, compressor wheel ,turbine wheel castings, turbo bearing, turbine housings, compressor housings, bearing housing, back plate, repair kits, and so on.
We also can produce according to the part number or according to your samples or drawings.
|
|

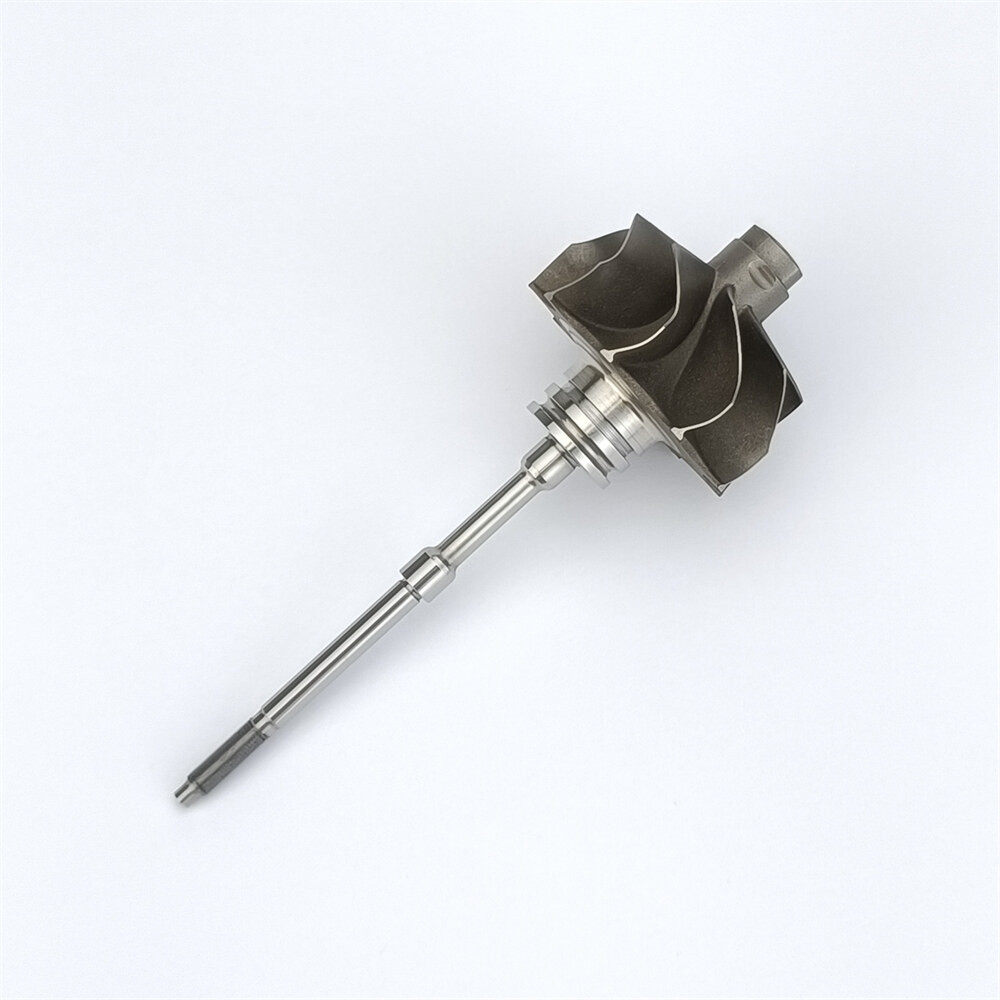

GT1446GLSZ turbo Turbine wheel shaft 785507-0003 for 810944-0005 turbochargers Images
|
